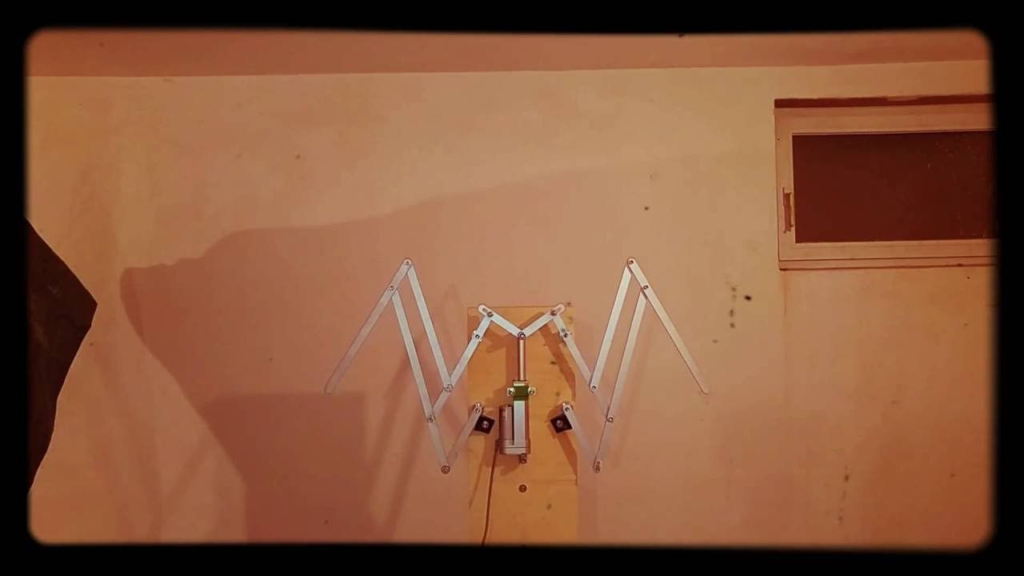

A wing open and close system using a linear actuator is a motorized mechanism designed to move hinged surfaces between open and closed positions with precision and reliability. It converts electrical, hydraulic, or pneumatic energy into straight-line motion to automate tasks in automotive, aerospace, and industrial applications. This guide explains how the system works, its components, and why it delivers efficient and controlled movement.
What Is a Wing Open and Close System Using a Linear Actuator?
A wing open and close system using a linear actuator is a motorized solution that controls hinged surfaces such as gull-wing doors, aircraft flaps, and automated windows. The actuator generates push-pull motion, allowing the wing to open or close smoothly and accurately.
Core Components
- Linear Actuator: Provides the push-pull force. Electric models include a motor, gearbox, and lead screw.
- Motion Linkage: Transfers linear movement into rotational motion for hinged wings.
- Mounting Brackets (Clevis): Secure the actuator to the frame and wing.
- Limit Switches: Prevent overextension and ensure safety.
- Power Supply: Delivers consistent electrical energy.
- Control System: Operates the actuator through switches, remotes, or microcontrollers.
How It Works
Operational Process
- Trigger: A remote, switch, or microcontroller sends a signal.
- Actuation: The motor rotates a lead screw.
- Extension or Retraction: The actuator rod moves forward or backward.
- Opening: The rod pushes the wing outward or upward.
- Closing: Reversing polarity retracts the rod.
- Stopping: Limit switches or sensors stop movement at preset positions.
Operations and Functions
- Converts electrical energy into linear motion.
- Enables precise positioning.
- Automates heavy or hard-to-reach wings.
- Enhances safety and operational efficiency.
Key Features and Technology
- Precision Control: Accurate positioning with minimal error.
- Compact Design: Fits into space-constrained systems.
- Integrated Limit Switches: Ensures safety and reliability.
- Weather Resistance: Suitable for outdoor applications.
- Smart Automation: Compatible with Arduino, PLC, and IoT systems.
- Energy Efficiency: Consumes less power compared to hydraulic systems.
Required Components
| Component | Function |
|---|---|
| Linear Actuator | Generates linear motion |
| Controller or Switch | Initiates movement |
| Power Supply | Provides energy |
| Mounting Brackets | Secures the system |
| Hinges | Enable wing rotation |
| Motion Linkage | Transfers force |
| Limit Switches | Prevents over-travel |
| Sensors | Ensure precise positioning |
Comparison Table: Types of Linear Actuator
| Type | Power Source | Best Use Case | Advantages |
|---|---|---|---|
| Electric | Electricity | Automotive and automation | Precise and efficient |
| Hydraulic | Fluid pressure | Heavy-duty aerospace | High force output |
| Pneumatic | Compressed air | Industrial systems | Fast operation |
Key Aspects
- Load Capacity: Determines lifting capability.
- Stroke Length: Defines the opening range.
- Speed: Controls opening and closing time.
- Voltage Rating: Commonly 12V or 24V.
- Ingress Protection: Ensures durability in harsh environments.
Key Application Areas and Reasons
Automotive
- Operates gull-wing and falcon-wing doors.
- Improves luxury and convenience.
Aerospace
- Adjusts wing flaps to control lift and drag.
- Enhances flight efficiency.
Building Automation
- Opens skylights and awning windows.
- Improves ventilation and energy efficiency.
Industrial Machinery
- Controls safety covers and panels.
- Boosts operational safety.
Steps to Follow for Installation
- Determine load and stroke requirements.
- Select the appropriate actuator.
- Install mounting brackets securely.
- Connect the actuator to the wing.
- Integrate the control system.
- Test movement and safety features.
- Calibrate limit switches.
Checklist for You
- Define load and stroke length.
- Confirm voltage compatibility.
- Verify mounting dimensions.
- Ensure weather resistance.
- Check built-in safety features.
- Test before final installation.
Examples
- Tesla-Inspired Doors: Automated gull-wing vehicle doors.
- Smart Skylights: Remote-controlled ventilation systems.
- Aircraft Flaps: Precision-controlled aerodynamic adjustments.
- Custom Camper Vans: Motorized roof extensions.
Advantages and Disadvantages
Advantages
- Automation: Reduces manual effort.
- Precision: Ensures accurate motion control.
- Safety: Includes overload protection.
- Low Maintenance: Requires minimal servicing.
- Energy Efficient: Consumes less power.
Disadvantages
- Higher initial cost.
- Requires proper installation.
- Limited load capacity compared to hydraulics.
Key Benefits and Specifications
Benefits
- Improves operational efficiency.
- Enhances safety and convenience.
- Supports smart automation systems.
- Provides reliable and consistent motion.
Typical Specifications
| Parameter | Range |
|---|---|
| Voltage | 12V–48V DC |
| Load Capacity | 50N–10,000N |
| Stroke Length | 10mm–1000mm |
| Speed | 5–50 mm/s |
| Protection Rating | IP54–IP67 |
People Also Ask
1. How a wing open and close system using a linear actuator works?
It uses a motor-driven actuator to push or pull a hinged surface, allowing it to open and close automatically with precision.
2. How do linear actuator operate wing open-close systems?
They convert electrical energy into linear motion, enabling controlled extension and retraction.
3. What companies in India manufacture wing open and close systems with linear actuator?
Manufacturers include industrial automation firms, actuator suppliers, and custom engineering companies across India.
4. Which is the best linear actuator for small wing mechanisms?
Micro or mini electric linear actuators with 12V power and low load capacity are ideal.
5. Where can I buy a wing open and close system using linear actuator online in India?
You can purchase them from specialized automation stores such as LinearActuator.shop and industrial equipment suppliers.
6. What are the essential parts for a linear actuator wing system?
Key parts include the actuator, control unit, mounting brackets, hinges, and power supply.
7. Top brands offering wing open and close systems with linear actuator in India.
Popular brands include Kathir Sudhir Automation India Pvt Ltd, electricactuator.in and linearactuator.shop.
8. Where to buy linear actuator for custom projects in India?
Online automation stores, industrial marketplaces, and specialized actuator suppliers provide reliable options.
9. What are the main components of a wing open and close system using a linear actuator?
The system includes a linear actuator, linkage mechanism, brackets, power supply, and control system.
10. What is the pricing for small linear actuator wing kits?
Prices typically range depending on specifications and quality.
Conclusion
A wing open and close system using a linear actuator delivers precise, reliable, and automated motion for modern applications. It supports industries ranging from automotive to aerospace and building automation. By selecting the right components and specifications, you can create efficient and durable automation solutions tailored to your needs.
